全高清数字标牌播放器--PVT-G002G-330

CPU

Intel Atom dual core 330 1.60 GHz
533 MHz Front Side Bus ( FSB )

Memory

On board 1 x SO-DIMM (2GB optional)
On board DRAM (1GB optional)
Supports Dual channel DDR2 667/800MHz
Max. capacity 3GB

Chipset

nVIDIAMCP7A-ION chipset

VGA

Integrated nVidia ION
DX10, Full HD support HDMI 1080p
PureVideo HD technology for GPU H/W decoding Blu-ray/HD DVD H.264
video without CPU usage

Audio

Codec: Realtek ALC888S ( supports 2 digital audio)
Supports high-performance 7.1 Channel by S/PDIF Out
Optical S/PDIF-In/Out (mini audio jack connector, Coaxial & Optical combo)
Internal speaker

Card Reader

Genesis GL826
Supports SD/SDHC/MS/MS Pro/MMC
USB2.0 interface
EC ITE IT8512E
ACPI 3.0 compliant

LAN

Controller: Atheros AR8131M
Supports GbE LAN

Wireless LAN

IEEE 802.11 b/g/Mini-PCI-E (option)

Storage

SATA 2.5＂HDD 160G, 5400rpm (option)

Optical Drive
Dimension
Weight

NetDVD - Slim External DVDWriter, 24X CD-RW (option)
Dimensions 190(W) x 135(D) x 20(H) mm
350g

AC Adapter

19V, 3.42A, 65W

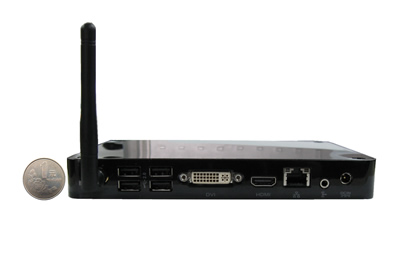

I/O Ports

6 x USB 2.0
1 x DVI-I
1 x HDMI
1 x RJ45
1 x Headphone
1 x Mic-In (support S/PDIF-In)
1 X Line-out(support SPDIF-Out)
1 x SD/SDHC/MS/MS Pro/MMC card slot
1 x DC-in

LED indicator

Power on/off, Suspend, HDD LED, Light Bar

BIOS

AMI, support PnP, ACPI 3.0

OS

Windows XP (optional), Windows Vista (optional), Windows 7 (optional)

Dimension

190mm x 135mm x 25mm

Weight

450g ± 10%

Accessory

1 x Power Cord
1 x Adapter
1 x DVI to D-Sub adapter
1 x Bracket (optional)
1 x Stand (optional)
1 x Manual (optional)
1 x DVD Disk (optional)

EMI

CE, FCC, CCC, BSMI, Gost, VCCI

Safety

CB, UL, CCC, BSMI, Gost, PSE (only for AC Adapter)

RF

CE, FCC, R & TTE

Optional Items

HDD, Memory, Wireless, NetDVD, Stand, VESAmounted bracket, CD-Title, Manual, OS etc.
